Goods Wagon Kits





Complete   kits all include working NZR style 'chopper' couplers and North Yard brand wheels.   Bodyline kits are also offered for those who wish to substitute their own chassis or to use the bodies alone as lineside features (e.g. converted to a hut)

Complete Kits

Use your browser BACK button to return to this page after viewing images

Product Number

Product Description


Per pack

Price $NZ

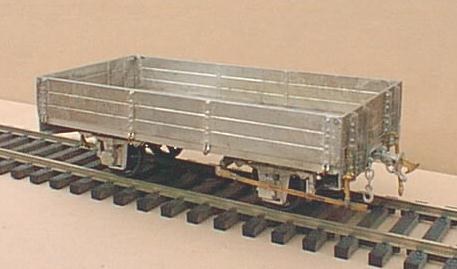

KT-M7 A three plank open wagon of a wooden bodied prototype.  The kit features all metal construction and is recommended as an 'entry level' kit for those wishing to master low melt soldering techniques.  It includes an 8' 6" wheelbase chassis to BP 25150 which dates the wagon as modern for its type - no earlier than 1929.  The kit has working drop sides. photo(sides up)

photo (sides down)

 1 Now withdrawn
KT-W7 Meat Van.   Sides and ends cast in resin.  Styrene roof.  Lost wax brass door actuating mechanism (non working).  Kit includes an 8' 6" wheelbase chassis to BP 25150. sketch 1 69.50

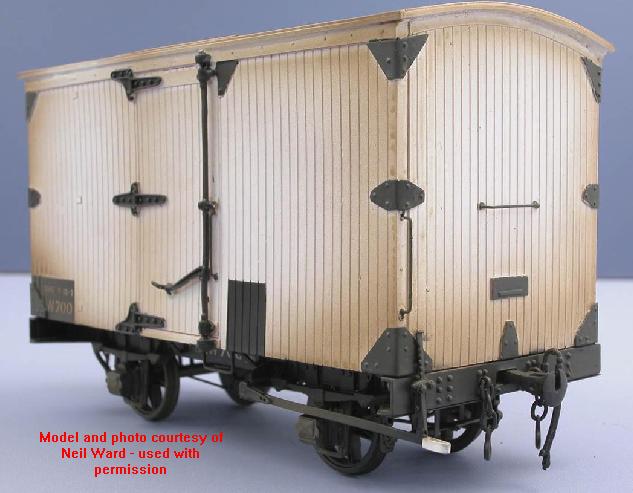

KT-W8 Meat Van.   Sides and ends cast in resin.  Styrene roof.  Lost wax brass door actuating mechanism (non working).  Cast pewter corner brace plates - a visually distinctive feature of this wagon. Kit includes an 8' 6" wheelbase chassis to BP 25150. photo of model by Neil Ward 1 70.50

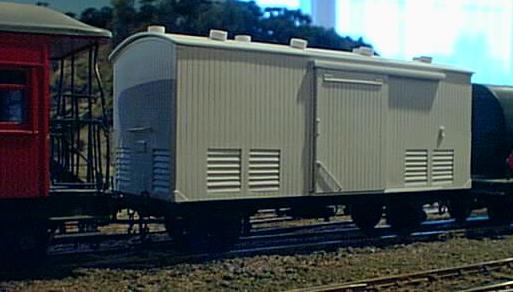

KT-Xc1 Ventilated Van.  There is some discussion over the designation 'Xc1' and it has been suggested that it should be 'Xc7' but since all Xc wagons were built to the same plan it is probably academic!  Sides and ends cast in resin.  Styrene roof.  White metal door hoods, runners and door stop strip.  Supplied with 13' 0" wheelbase chassis with floating axleboxes. photo 1 Now withdrawn
KT-Kc1 Closed Van.   Similar in construction to the Xc1 but without ventilation.  Sides and ends cast in resin.  Styrene roof.  White metal door hoods, runners and door stop strip.  Supplied with 13' 0" wheelbase chassis with floating axleboxes. image to come 1 Now withdrawn

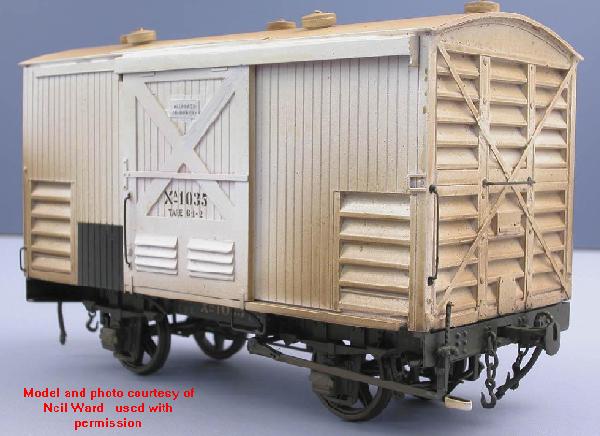

KT-Xa5 Ventilated Fruit Van with full louvered ends. Sides and ends cast in resin.  Styrene roof.   White metal door hoods, runners and door stop strip.  Kit includes an 8' 6" wheelbase chassis to BP 25150.  This kit has been remastered to deepen the louvre profile  and allow for added white metal parts as stated,  for durability and ease of assembly. Photo of model by Neil Ward 1 66.50

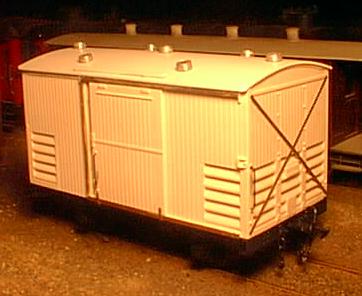

KT-Xa6 Ventilated Fruit Van with half louvered ends. Sides and ends cast in resin.  Styrene roof.   White metal door hoods, runners and door stop strip.  Kit includes an 8' 6" wheelbase chassis to BP 25150.  This kit has been remastered to deepen the louvre profile  and allow for added white metal parts as stated,  for durability and ease of assembly. Photo of wagon under construction 1 66.50






Bodyline Kits

These kits are identical to those listed above except that they contain no chassis components whatsoever.  They may be used for kit bashing or to create lineside features or to be mounted on alternate chassis of the builder's choice.


Product Number

Product Description


Per pack

Price $NZ
KT-W7 BL Meat Van Body only kit 1 29.00
KT-W8 BL Meat Van Body only kit 1 30.00
KT-Xc1 BL Ventilated Van Body only kit 1 Now withdrawn
KT-Kc1 BL Closed Van Body only kit 1 Now withdrawn
KT-Xa5 BL Ventilated Van body only kit 1 26.00
KT-Xa6 BL Ventilated Van body only kit 1 26.00

Tank Wagon Bodyline Kits

These kits include chassis and couplers but do not include bogies nor wheels.  Bogies listed as BP97 and BP 3181 under Chassis and Bogies are suitable for the Uc2 and Uc8.  A more modern bogie to BP 25340 which is suitable for Uc9 is marketed by von Strapp.

These kits contain a plastic tube tank, sheet brass deck and many white metal or pewter and lost wax brass castings.  They are heavy.

These kits are not expected to be re-run.


Product Number

Product Description


Per pack

Price $NZ

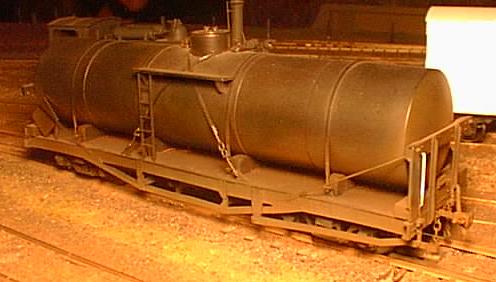

KT-Uc2 BL Single dome tank wagon built 1929 (less bogies) photo 1 Now withdrawn

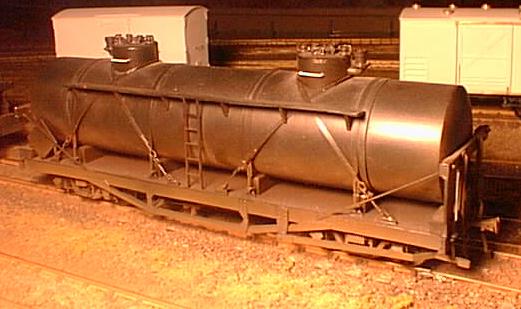

KT-Uc8 BL Two dome tank wagon built 1929 (less bogies) photo 1 Now withdrawn
KT-Uc9 BL Single dome tank wagon built 1937 (less bogies) image to come 1 Now withdrawn
