Cast in polyurethane for relative high strength and light weight these seats are designed primarilly for our own range of coaches but are also suitable for scratchbuilding projects.

It has been customary for the floors of our coaches to be attached to the bodies with screws into small wooden blocks attached to the inside of the end walls. The corner seats in the following sets have been made solid blocks to enable them to be glued to the end walls and to be drilled and tapped to accept screws from the underside of the floor thereby providing a means for attachment of floor to body instead of the wooden blocks that were previously used.

All other seats are intended to be mounted on the floor of the coach and support is required adjacent to the wall. This is provided in the complete sets with castings of strips to simulate ducting as is shown in the photos linked to the products listed below.

The photos linked to this page are of early production castings which were cast in several colours appropriate to the finished colour of the parts. Resins have changed since then and those currently in use do not accept red and 'varnish' pigments without distorting the colour. Accordingly, all current castings are made in a neutral grey colour which is a good base colour for painting.

Product Number	Product Description	Image	Per pack	Price $NZ
CNR-1	Corner seats with 20" wide squabs, moulded in red with panelled sides moulded in tan to simulate varnised wood	photo	4	5.25
CNR-2	Corner seats with 25" wide squabs, moulded in red with panelled sides moulded in tan to simulate varnised wood	photo	4	5.60
CNR-3	Corner seats with 33" wide squabs, moulded in red with panelled sides moulded in tan to simulate varnised wood	photo	4	6.50
CNR-MIX-1	Corner seats set of 8 in a common configuration of 2 x 20", 4 x 25" and 2 x 33" as described above		set as described	11.00
SS-12	Scarrett seats type S, single seat with aisle side end. Wall side support shown in photo is NOT included. A glueing jig is included	photo	12	9.00
SD-12	Scarrett seats type S, double width seat with aisle side end. Wall side support shown in photo is NOT included. A glueing jig is included	photo	12	12.25
ST-12	Scarrett seats type S, twin single seats with aisle side end and intermediate end. Wall side support shown in photo is NOT included. A glueing jig is included	photo	12 pr	16.50
DUCT	Support strips to be glued at the edges of the floor ro butt up to the inside of coach wall to provide wall side support for all the above styles of Scarrett seats. 8 strips of about 100 mm which is enough for one 47½ ft ot 50 ft coach. The strips are designed to simulate ducting.	photo	1 set	4.75

Product Number	Product Description	Image	Per pack	Price $NZ

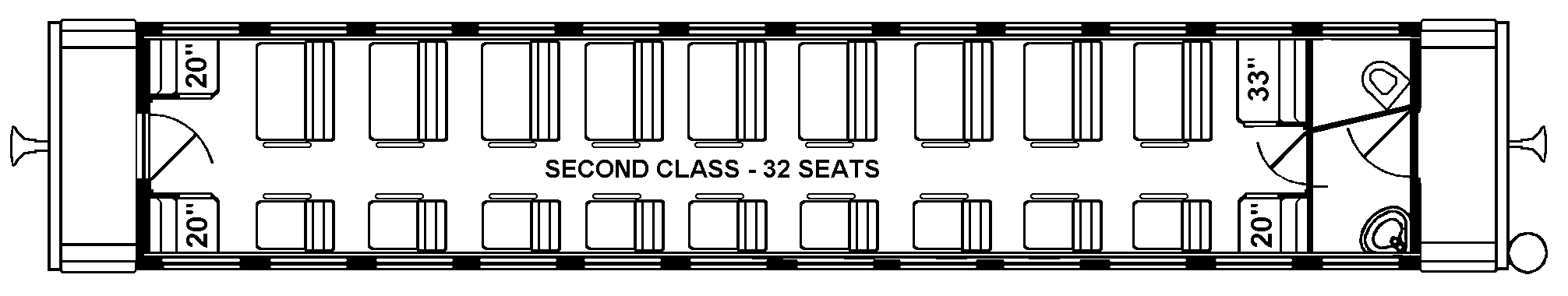

32-2-a	47½ ft second class with no centre partition, 32 seat, being 9 singles, 9 doubles, 3 x 20" corner and 1 x 33" corner. (Fred Lee seating plan SP1, p27 NZR Passenger Rolling Stock Plan Book Vol 1)	plan	1 set	27.50

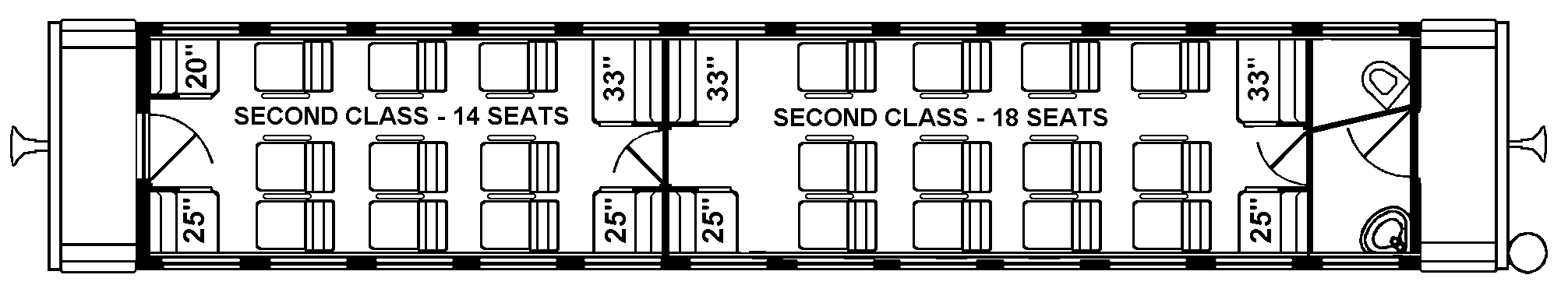

32-2-b	47½ ft second class with centre partition, 32 seat, being 7 singles, 7 twins, 1 x 20" corner, 4 x 25" corner and 3 x 33" corner. (Fred Lee seating plan SP2, p27 NZR Passenger Rolling Stock Plan Book Vol 1)	plan	1 set	32.50

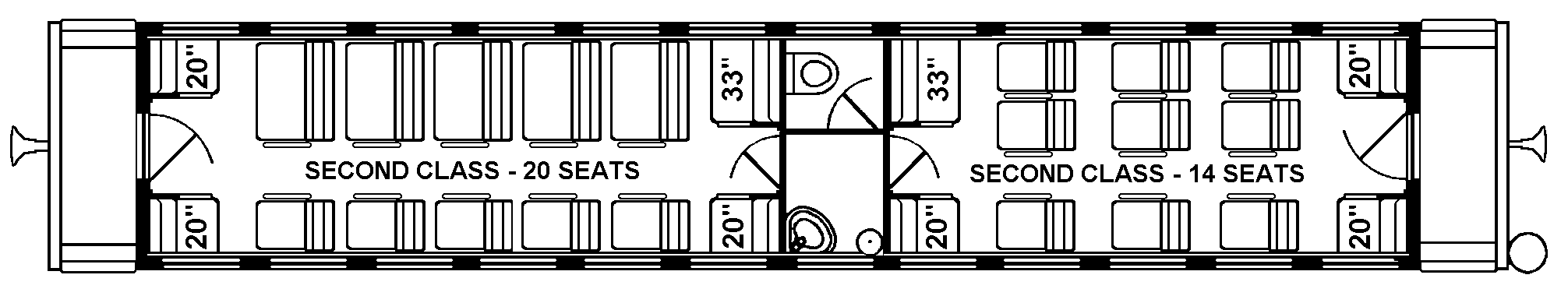

34-2	47½ ft second class with centre partition, 34 seat, being 8 singles, 3 twins, 5 doubles, 6 x 20" corner and 2 x 33" corner. (Fred Lee seating plan SP4, p27 NZR Passenger Rolling Stock Plan Book Vol 1)	plan	1 set	33.00

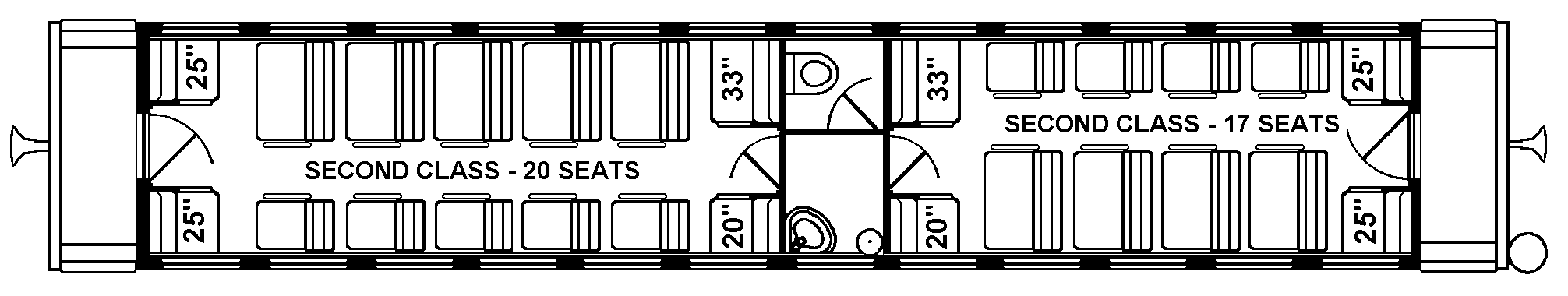

37-2	47½ ft second class with centre partition, 37 seat, being 9 singles, 9 doubles, 2 x 20" corner, 4 x 25" corner and 2 x 33" corner. (BP 35037)	plan	1 set	33.00

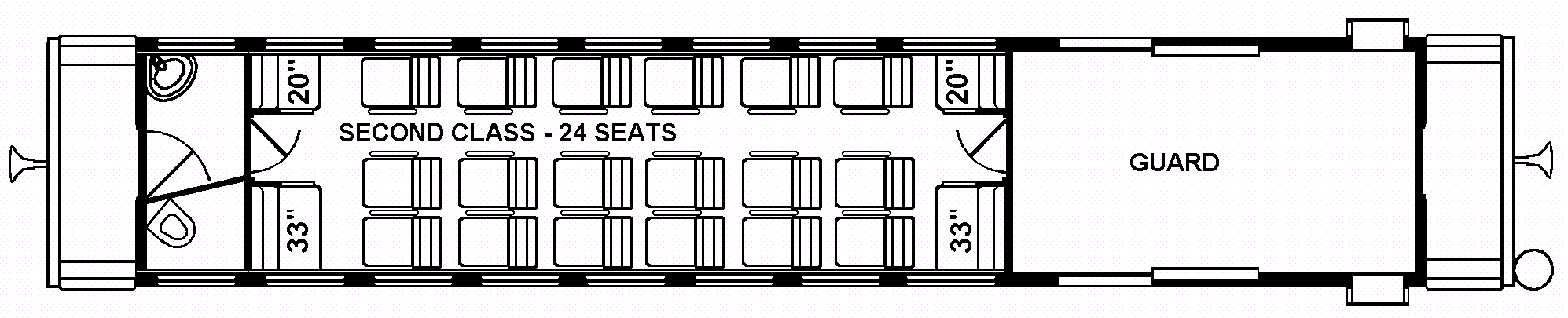

24-2-AF	47½ ft car van second class, 24 seat, being 6 singles, 6 twins, 2 x 20" corner, and 2 x 33" corner.	plan	1 set	26.50

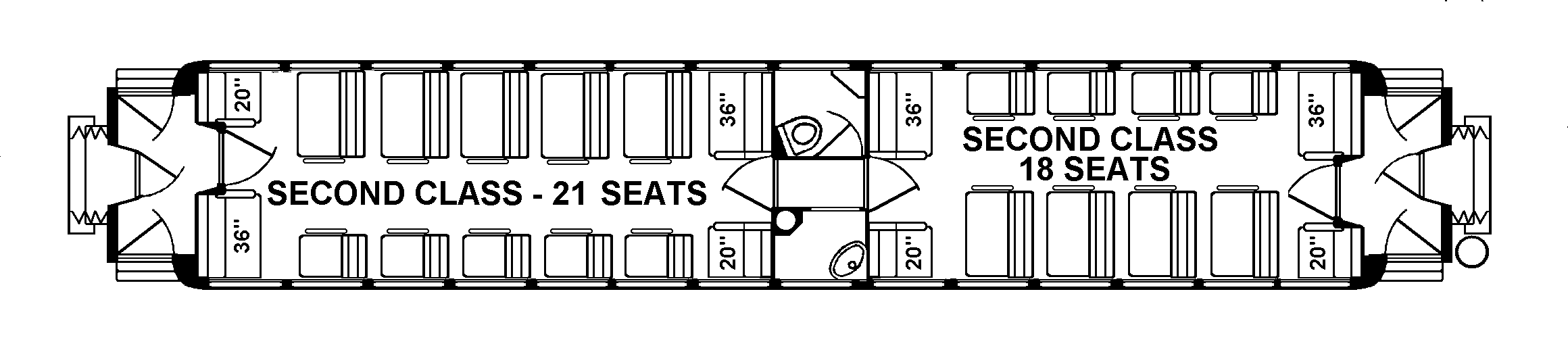

39-2-50	50 ft steel car (Fred Lee, p33 NZR Passenger Rolling Stock Plan Book Vol 1) 39 seat being 9 x singles, 9 x doubles, 4 x 20" corner and 4 x 36" corner (for 8' 5½" wide car)	plan	1 set	34.00

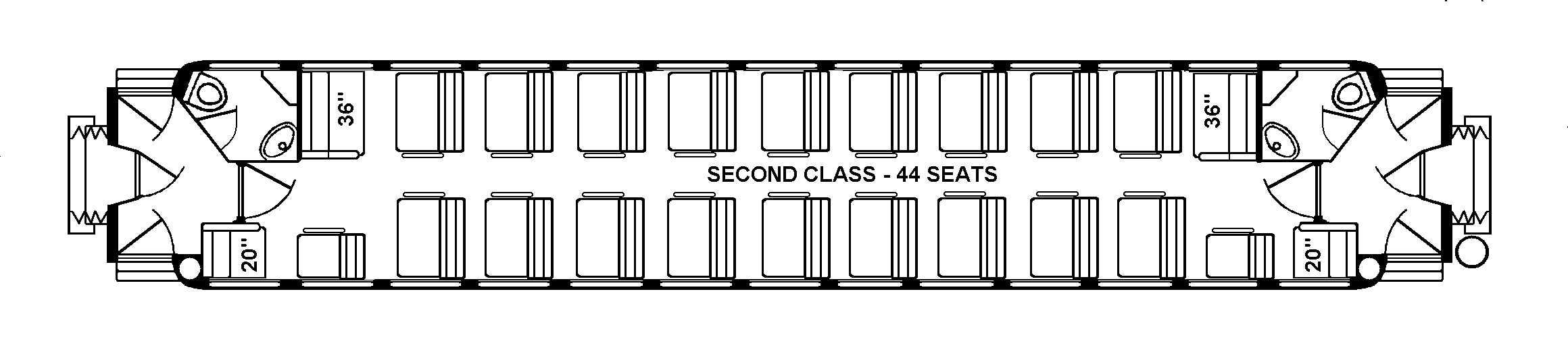

44-2-50	50 ft steel car, NIMT 44 seat, being 18 x doubles, 2 x singles, 2 x 20" corner and 2 x 36" corner (for 8' 11" wide cars)	plan	1 set	35.00
